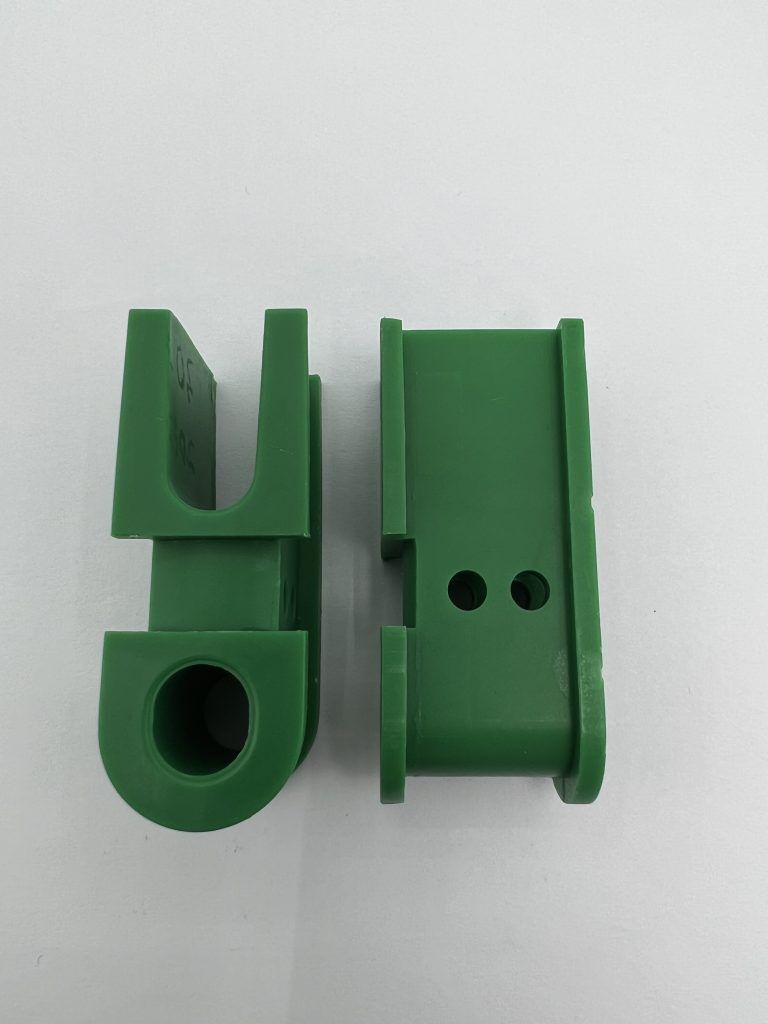

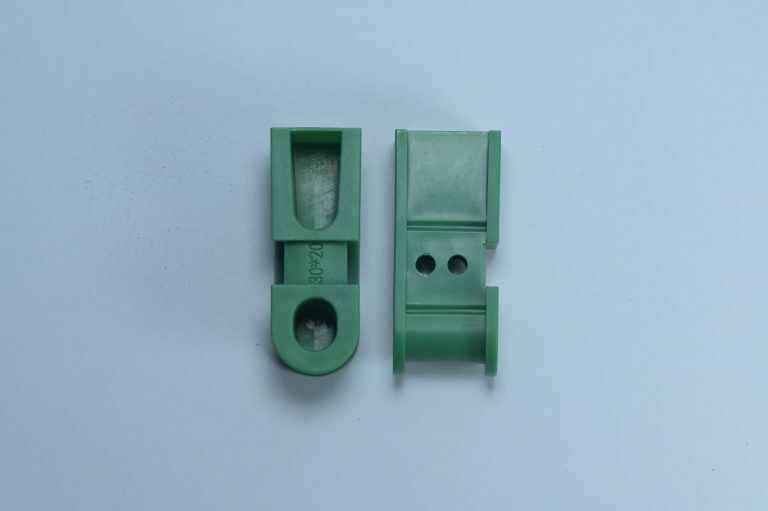

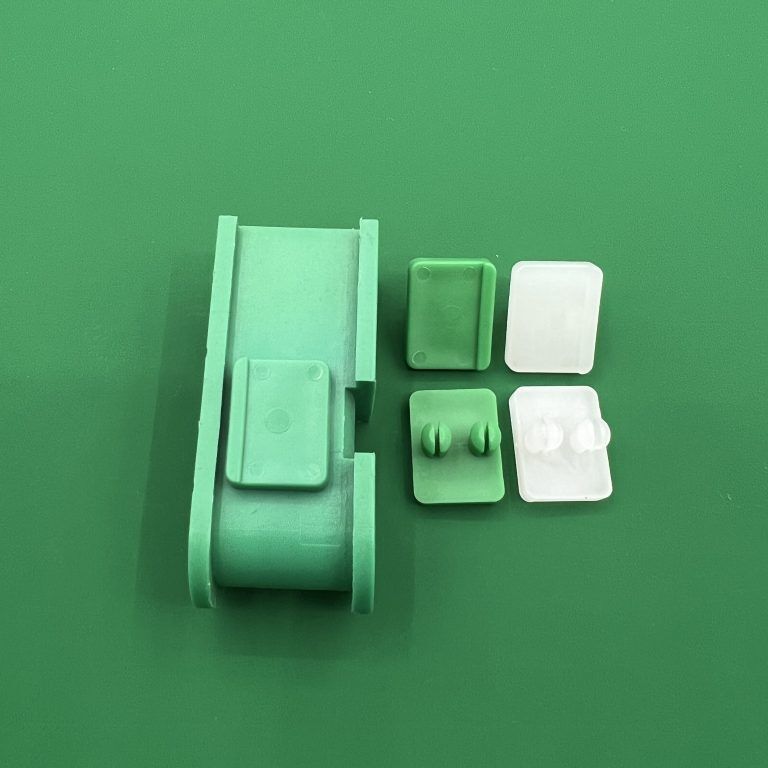

Plug-in/Bracket/U-block
Is your U-block positioning inaccurate? Is assembly efficiency low?
Qixingyuan plug-in/Bracket/U-block ensures precise positioning and fast assembly!
Core Advantages: High-precision manufacturing, wear and corrosion resistance
Selection Recommendation: Choose based on plug-in size and equipment structure
Applications: Positioning devices for plug-in machines, assembly lines
Assembly Speed Up Tool: Improve assembly accuracy and speed, reduce rework, and optimize production flow.
Made of high-strength plastic, it offers precise dimensions, a smooth surface, and strong wear resistance. It is suitable for high-speed assembly environments and supports custom specifications.
PCB Wet Process Equipment Plug-in Overview
Product Overview
The plug-in is a critical wear part in PCB wet process equipment (e.g., developing, etching, plating systems). It supports and guides transmission shafts, protecting conveyor bridges from damage while ensuring smooth operation.
Applications
Developing/etching/plating machines
Conveyor bridge support systems
Shaft protection in chemical environments
Key Features
Wear & chemical resistance: Suitable for acid/alkali conditions
Self-lubricating: Reduces friction and energy loss
Easy replacement: Modular design minimizes downtime
Material options: HDPE (standard), PVDF/PEEK/PFA (special needs)
Technical Specifications
| Item | Specification |
| Material | PPļ¼UPE (standard), PVDF (acid/alkali-resistant), PEEK (high-temp), PFA (high-purity) |
| Dimensions | Thickness, groove width, center distance, inner diameter (customizable) |
| Selection | Wheel outer diameter determines plug-in center distance |
| Compatibility | Wet process conveyor bridges, chemical treatment equipment |
To provide high-precision, high-performance PCB equipment accessories, empowering the global electronics manufacturing industry to achieve efficient production.
