In the area of PCB manufacturing, makers face one usual problem all the time. Boards can become unsteady and move out of place. This happens when they travel inside the production lines.
The board moves from one stage to the next one. Vibrations come up during this. Bumps also happen. Uneven parts in the conveying machines can make the boards shift. They can even change shape a little. In the end, all this affects the quality of the finished product.
This kind of problem is especially clear in certain steps. These include etching, developing, and coating. In these steps, the board needs to be in the exact spot. The alignment must be right too. This is very important for good results.
To deal with this issue, manufacturers turn to Wheel Discs more often these days. The discs are designed in a special way. They offer much better steadiness. They help lower the wrong placement of boards. They also make the transportation go smooth all through the production process.
Understanding the Problem: Instability During PCB Transport
During the process of making PCBs, boards must move from one processing station to another. This movement is vital for the work. However, the machines are quite complex. The speeds can vary a lot. The volume of work is high too. Because of this, it is hard to keep the alignment perfect while the boards are moving.
Misalignment or unsteadiness can lead to several problems.
- Inaccurate Positioning: Small changes in where the board is can cause bad application of materials. Or the processes go wrong. This is true for things like etching and printing.
- Increased Downtime: When boards get out of place, it often means you have to adjust the equipment again. Sometimes, workers have to step in by hand. This leads to more time when the line stops.
- Quality Control Issues: Any wrong placement in key processes can hurt the PCB quality. It creates defects. Because of this, there is more rework. Materials get wasted too.
These issues lower the efficiency of the whole production line. They make the costs of operations go up. They can also result in products that do not meet the needed standards.

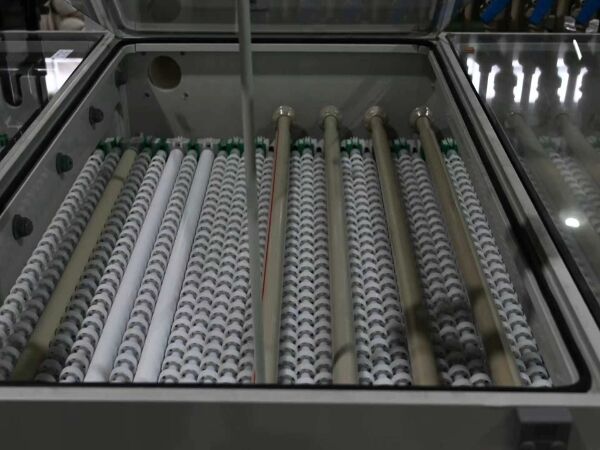

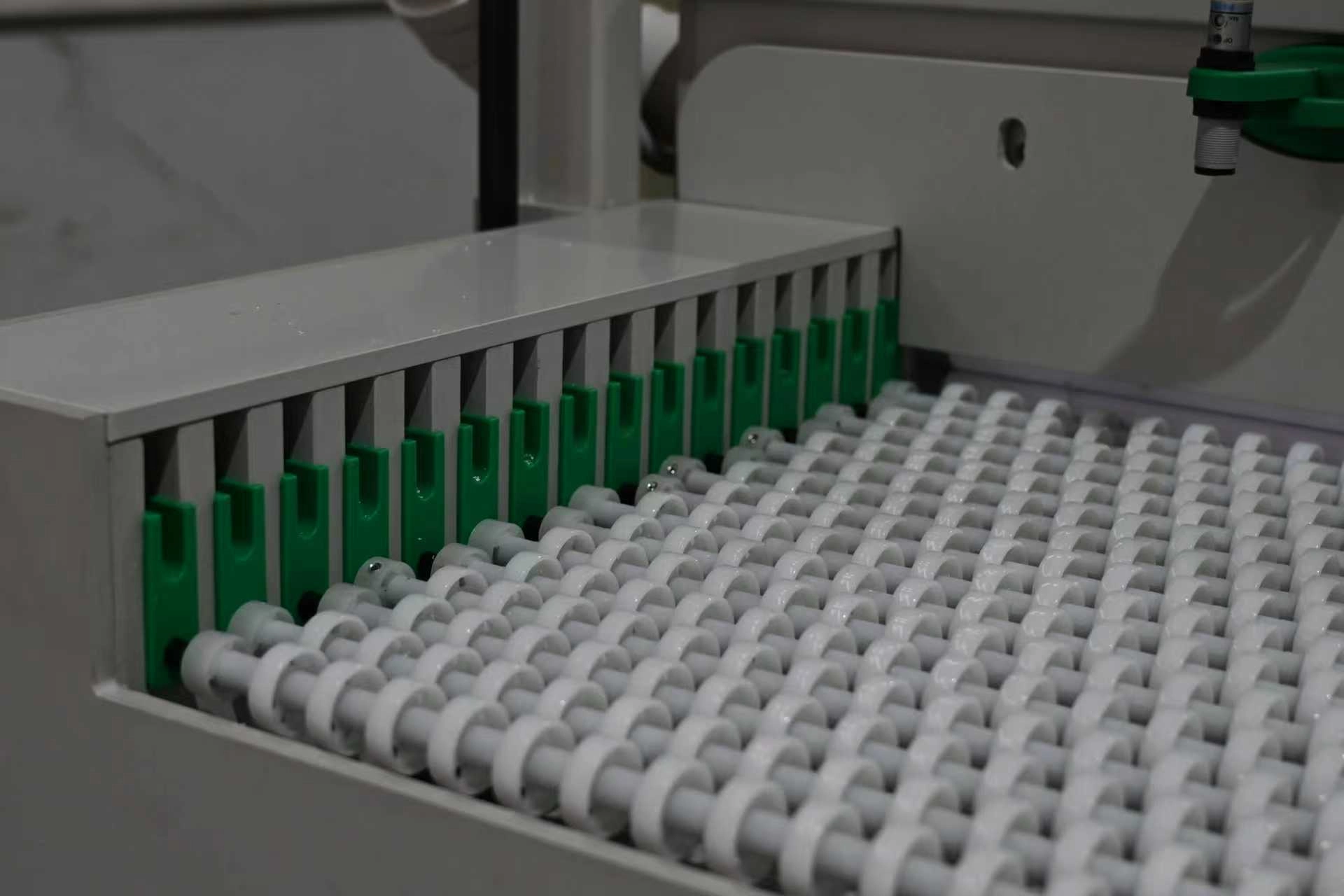

The Role of Wheel Discs in Improving Stability
Wheel Discs serve as a key part in fixing the issues of unsteadiness and misalignment in PCB manufacturing. Their unique design and way they are built provide several good points. These points help make the boards more stable during transport.
Enhanced Support and Stability
The main purpose of Wheel Discs is to give stable support to the PCB. The board goes through different stages in the manufacturing process. These discs are made with high-strength materials. They resist wear and any change in shape. This way, they offer the same support every time. This matters a lot in production environments that run at high speed. There, precision is the key.
Minimizing Vibration and Shifting
One key benefit of Wheel Discs is how they cut down vibrations. These vibrations could cause the board to misalign. Some of the wheel discs have a rubberized or soft coating. This coating takes in shocks well. It creates a cushioning effect. Because of this, the boards do not slip or vibrate. The cushioning is very useful in conveyor systems that run fast. Vibrations are more common there.
Durability and Corrosion Resistance
In PCB production, the environment has many chemicals and other factors. Durability becomes a big concern here. Many Wheel Discs use materials that resist corrosion. Examples are PVC, PE, and various engineered plastics. These materials let the discs handle tough chemicals and temperatures. They do not break down. So they give performance that lasts long.
Precise Alignment
Wheel Discs come with a strong design. They are made in a precise way. This gives more consistent positioning. The boards stay in the correct orientation as they move. This prevents misalignment. Each PCB can go through the right processes without any break.
Types of Wheel Discs for PCB Manufacturing
You can use different types of Wheel Discs. It all depends on the specific needs in the PCB manufacturing process. Some common types are shown next.

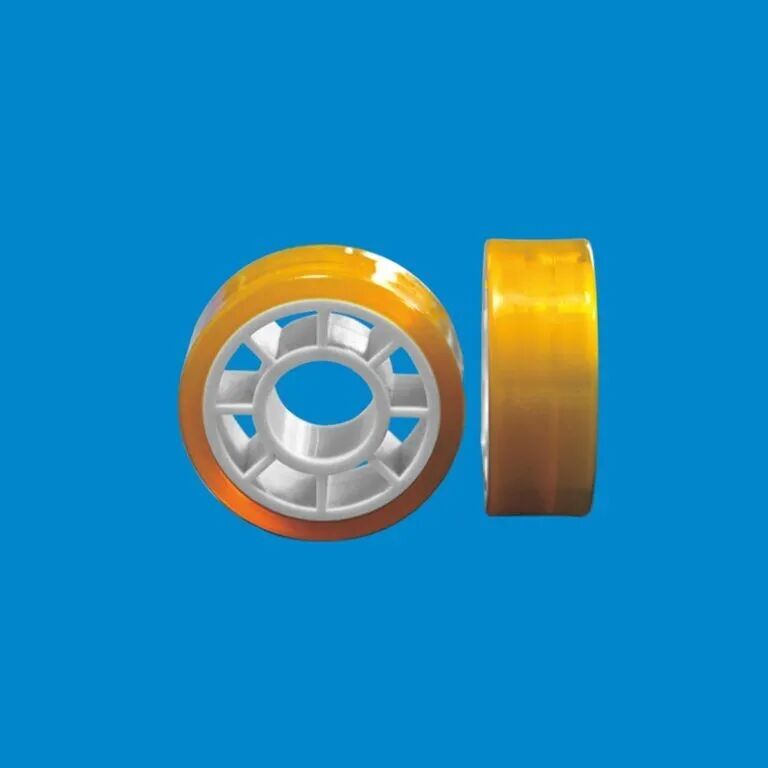

Soft and Rubberized Wheel Discs
These discs come with a soft, rubberized coating. It provides great shock absorption. It also reduces noise. They are ideal when boards tend to slide or vibrate. The transport becomes smooth and stable with them. The elastic nature helps cushion the board. It absorbs vibrations from the conveyor system. This prevents possible misalignment or damage.
Hard Plastic Wheel Discs
In environments that need strong support and little flex, hard plastic Wheel Discs are the best choice. They are made from materials like PP, PE, and PVDF. These give a solid base. Lateral movement of the boards is stopped. Alignment stays good. Shifting does not occur during transport. They work well for larger or heavier boards.
Customized Wheel Discs
In some cases, manufacturers need a solution that fits their exact needs. Customizable Wheel Discs can be made for this. They come with specific hardness, diameter, and thickness. This suits different types of PCBs or production line setups. The customization ensures the perfect fit. It enhances stability and precision even more during transport.
Key Benefits of Using Wheel Discs in PCB Production
When you use Wheel Discs to improve board stability during transport, you get several operational advantages.
- Improved Production Speed: Downtime from misalignment goes down. Production lines can run more smoothly. They become more efficient too.
- Reduced Risk of Damage: Stable and secure board transport lowers the chance of harm. Scratches or misalignment are less likely. This cuts down on defective products.
- Cost Efficiency: Misalignment and manual work are prevented. The production process becomes streamlined. Labor costs drop. Material waste is reduced as well.
Because of these advantages, it is clear why Wheel Discs are popular in the industry. They help in many practical ways.
Why Choose Qixingyuan Wheel Discs for PCB Manufacturing

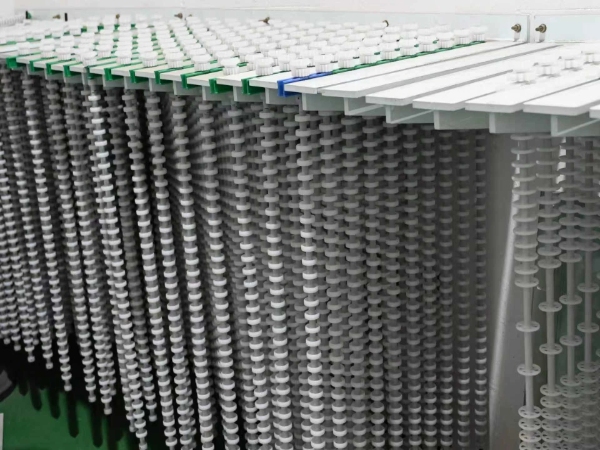

img.High-quality Wheel Discs from Qixingyuan designed to stabilize PCBs, reduce vibrations, and ensure precise alignment during production line transport.webp
Shenzhen Qixingyuan Machinery Equipment Co., Ltd. offers a range of high-quality Wheel Discs. These are designed to meet the needs of PCB manufacturers. Our products are known for their durability. They have precision too. They can withstand harsh conditions. This ensures smooth transport of boards through every stage of production.
Here is why Qixingyuanās Wheel Discs stand out from others:
- Customization: We offer a variety of Wheel Discs. These can be customized to fit your production line. Options include material selection, diameter, thickness, and hardness.
- Superior Durability: High-strength materials are used. Qixingyuan Wheel Discs are built to last. This reduces maintenance costs. It also lowers downtime.
- Efficient Transport: Our discs provide reliable board transport. The risk of misalignment drops. Production efficiency increases as a result.
- Quality Assurance: Qixingyuan is committed to the highest quality standards. This ensures optimal performance in PCB manufacturing environments.
By choosing Qixingyuan Wheel Discs, PCB manufacturers can improve the stability of their production lines. They reduce defects. Overall production efficiency gets better.
About Qixingyuan Machinery Equipment Co., Ltd.
Shenzhen Qixingyuan Machinery Equipment Co., Ltd. is a leading supplier of high-quality PCB equipment accessories. The company specializes in the production and supply of accessories for PCB horizontal line wet processing equipment. Qixingyuan offers a wide range of products. These cater to the needs of the PCB manufacturing industry. The company provides innovative, durable, and efficient solutions. These include Wheel Discs. They ensure smooth operations and enhanced productivity across all PCB production lines. With a focus on quality and customer satisfaction, Qixingyuan continues to lead the way. They deliver reliable equipment solutions for PCB manufacturers worldwide.
Conclusion
In the highly competitive world of PCB manufacturing, it is essential to keep board stability. Precise alignment during the production process is needed too. This helps deliver high-quality products in an efficient way. Wheel Discs play a vital role in reaching these goals. They provide the necessary support. They reduce vibrations. They ensure smooth transport through various stages of production.
