Moisture left on circuit boards after cleaning is a usual problem. This issue comes up often in the PCB making industry. It happens a lot with Flexible Printed Circuits, or FPC for short.

Drying these sensitive parts and taking off the water is very important. We must do this to stop any harm or later failures. Tiny hole air knives have become a good fix for this issue. They push out fast and focused air. This air takes away leftover water from the board surface in a quick way.

In this article, we will look at how these knives work. We will also talk about their good sides. The main point is how they help in FPC cleaning steps.

Understanding the Tiny Hole Air Knife

A tiny hole air knife is a special tool. It sends a strong stream of air right onto a surface. Its exact air flow works well for drying sensitive items like FPCs.

These air knives have very small jet holes. The holes make the air tight and strong. This setup takes away water well, even in tight spots.

In FPC cleaning, workers use these knives after they wash the board in a chemical mix. The drying step matters a lot. It makes sure no extra water stays behind. Extra water could cause electric faults or rust or bad joins in next steps of making.

The tool is easy to use in lines for making boards. It fits right after the wash area. This way, boards move on dry and ready.

Features of Tiny Hole Air Knives

Tiny hole air knives have many good points that make them stand out. Let us look at each one step by step.

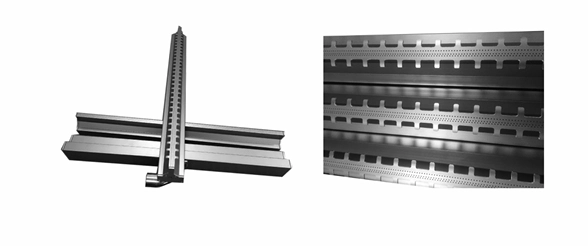

First, they have a fine micro-jet with focused airflow. The small holes create a tight stream of air. This stream works great at drying even the tiniest gaps on the circuit board. No water hides in small areas anymore.

Next comes high pressure and fast speed. The air moves very quickly. It pushes moisture off the board in a short time. This speed helps a lot in busy factories.

The flow stays steady and does not pulse. This steady air keeps things safe. It stops any shake or harm to the soft parts on the FPC. Boards stay whole and good.

Last, the knives use strong materials that fight rust. They often come from aluminum alloy. This metal lasts long even in wet and chemical shops. Factories do not need to replace them soon.

These features work together well. They make the knife a top choice for FPC work.

The Role of Tiny Hole Air Knives in FPC Cleaning

FPC cleaning needs careful steps. These boards are soft and need gentle care to avoid breaks. After the wash, water often stays in tight spots like vias and tiny holes.

Tiny hole air knives fix this exact problem. They send fast air into narrow gaps. The air clears water without any harm to the board.

This drying step is key for good results. Leftover water can bring big troubles. For example, it leads to rust on copper lines. Rust breaks the electric paths and makes boards weak.

Water can also cause short circuits. This happens when water sits in the wrong spots. Devices then fail or stop working.

Plus, moisture hurts sticking power. It makes components or coatings not hold well. Boards may come apart later.

Tiny hole air knives stop all these risks. They dry every part of the board fully. Moisture goes away from all spots. The board comes out clean and dry for next steps.

Key Benefits of Using Tiny Hole Air Knives in FPC Manufacturing

Tiny hole air knives give many plus points in FPC making. Here are the main reasons they are a smart pick for drying and water removal.

They work fast. The focused air jet dries boards quicker than old ways like big fans or heat tools. Factories get more boards done each day. Output goes up a lot.

They are very careful. The tight air stream clears water from hard-to-reach spots. No moisture stays in small gaps or vias. This care meets high quality needs in FPC work.

The knives last long too. They use rust-proof metal like aluminum alloy. They handle tough shop conditions without quick wear.

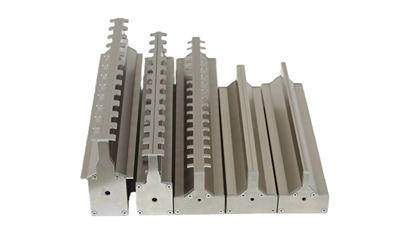

You can change them to fit needs. Knife length or hole size or air strength can adjust. This fit makes them right for any FPC line.

All these good points help factories run smooth. Boards come out better and with fewer bad ones.

Why Choose Shenzhen Qixingyuan Machinery for Your Tiny Hole Air Knife Needs?

Shenzhen Qixingyuan Machinery Equipment Co., Ltd. is a top supplier of wet process tools and parts for PCB making. Their tiny hole air knives are built for exact work and long life. They give great results in water removal and drying.

The knives from this company suit shops that need careful drying. This includes FPC and PCB lines plus other soft electronic parts. The firm focuses on good quality and new ideas. This has made them a name people trust in PCB work.

Many factories pick them because the tools fit well and work every time. Support is quick too if any issue comes up.

Now that we see the good sides in FPC work, it helps to look at other uses too.

How Tiny Hole Air Knives Help with Moisture Removal in Applications

Tiny hole air knives do more than just FPC jobs. They fit key stages of PCB manufacturing because they are so useful.

One big use is after cleaning to take off water or chemicals. The fast air clears surfaces fast and clean.

In etching steps, they clear developer chemicals. This keeps the process smooth and right.

Tiny hole air knives speed up drying after many steps like development or etching or plating. Time saved adds up in busy lines.

These extra uses show how flexible the knives are. They help in many parts of board making.

Brand Introduction: Shenzhen Qixingyuan Machinery Equipment Co., Ltd.

Shenzhen Qixingyuan Machinery Equipment Co., Ltd. is a leading maker of high-quality PCB horizontal line wet tools, spare parts, and pieces. They give many custom fixes for the electronics making field.

The company works hard on new ideas and top quality. This has built them a strong name in PCB and FPC areas. They meet the best standards for these industries.

You can visit their official site for more details on tools and help. They are ready to support your needs in board making.

Conclusion

Tiny hole air knives have shown they are a must-have tool in FPC cleaning. They give a careful and strong way to clear leftover moisture. The focused air stream makes sure no water stays on the board. This cuts risks of bad spots, rust, or short circuits.

Their fast work, careful touch, and ability to change for needs make them key for PCB and FPC shops. Factories that use them see better boards and smoother runs.

If you work with FPC or PCB, think about adding tiny hole air knives. They solve the moisture issue in a simple and smart way.
