Double-Diaaphragm Pressure Gauge for PCB Equipment

Technical Parameters

Diameter:	63 mm
Pressure Range，	0–1 / 0–2 / 0–3 / 0–4 / 0–6 / 0–7 / 0–10 kg/cm²
Housing Material，	PP
Diaphragm Material，	Integrated PP
Bourdon Tube Material，	Brass
Connector Thread Material，	Brass
Connection Thread，	1/2 NPT (female)
Installation Method，	Radial or Axial
Accuracy Class，	±1.5%FS/ ±2%FS/ ±2.5%FS
Corrosion Resistance，	Excellent suitable for various corrosive me

Product Details

Product Introduction

This pressure gauge features a highly corrosion-resistant PP housing and diaphragm design. The internal movement and connector are made of brass and aluminum alloy, making it suitable for long-term use in environments containing corrosive gases or liquids. With a 63mm diameter dial, it provides clear readings and supports accurate measurement across multiple pressure ranges.

Applications

Widely used in PCB manufacturing equipment, metal surface treatment equipment, pneumatic systems, filtration units, and liquid delivery pipelines to monitor pressure and ensure stable and safe production processes.

Features

Corrosion-resistant design: PP diaphragm integrated molding, suitable for acidic and alkaline media.
High accuracy: Available in ±1.5%FS, ±2%FS, and ±2.5%FS accuracy classes.
Multiple pressure ranges: Meets low to medium-high pressure measurement requirements.
Flexible installation: Supports radial and axial installation with standardized connection threads.
Reliable structure: Brass Bourdon tube and connector ensure durability and stability.

Product Video

Related Products

Pressure Gauge Heard (single side) for PCB Equipment

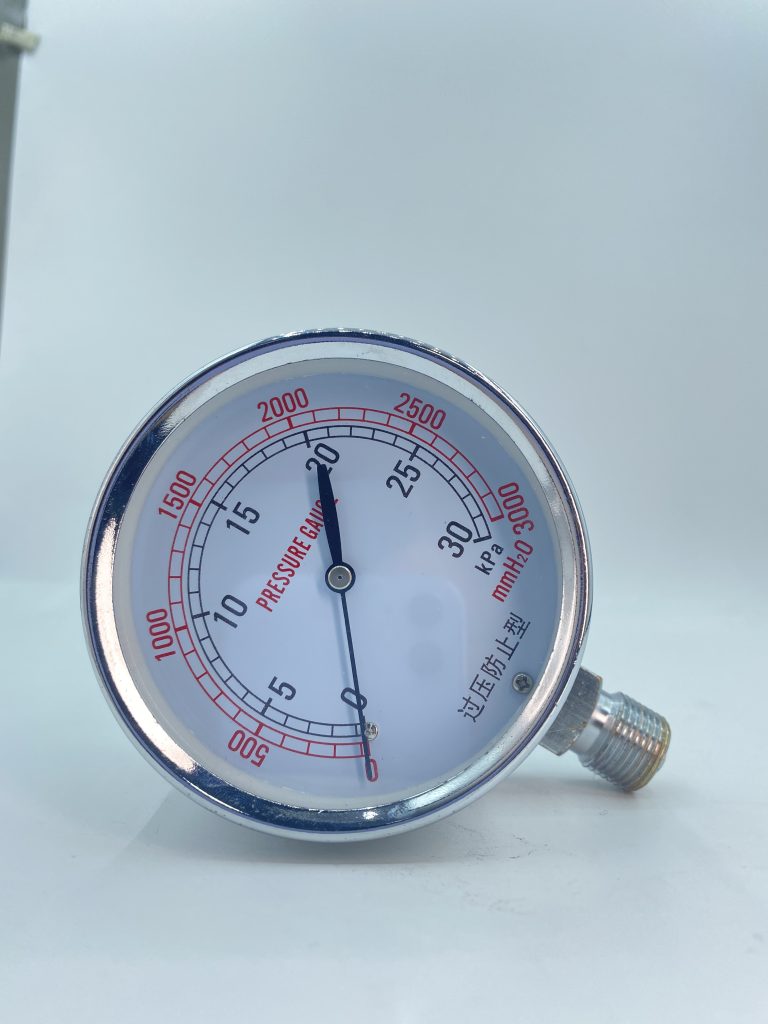

15/30 KPA SUS 304 Air Pressure Gauge
