SN:B101
Size:M2*21T*14L
The Super Screw is a high-performance PP gear (Polypropylene) or PVDF gear (Polyvinylidene Fluoride), both materials offering exceptional chemical resistance, impact resistance, and high-temperature performance, making them perfect for precise, low-noise power transmission. These gears are widely used in light-duty mechanical systems, especially in environments where quiet operation, durability, and long-term performance are essential.

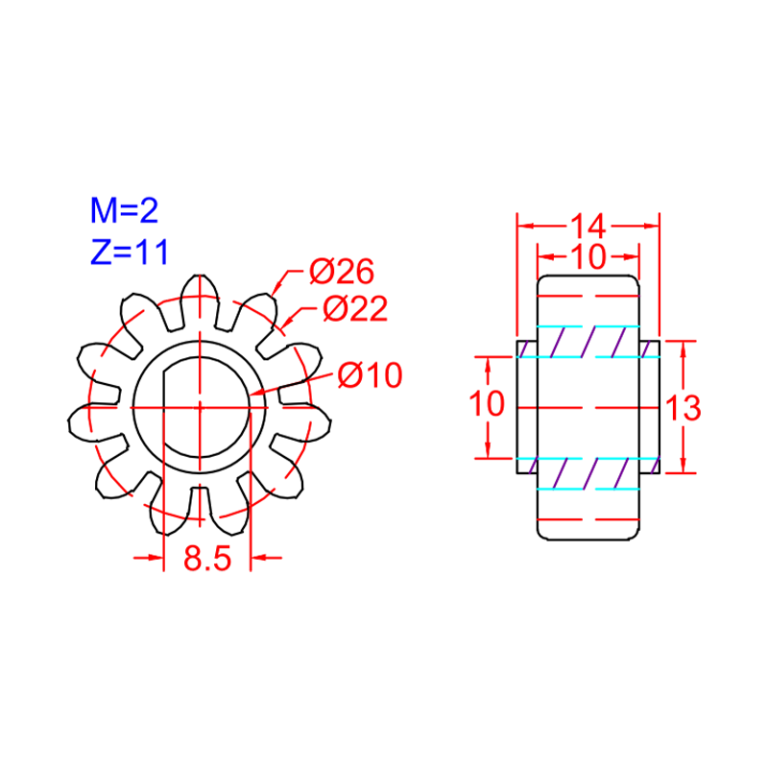

| Parameter | Specification |
| Module (M) | 2 |
| Number of Teeth (Z) | 11 |
| Outer Diameter | Φ26 mm |
| Shaft Hole Diameter | Φ10 mm |
| Product thickness | 14 mm |
| Material | PP / PVDF |
Chemical Resistance & High-Temperature Performance (PP & PVDF):
PP gears offer outstanding chemical resistance, making them ideal for environments where they come into contact with acids, alkalis, solvents, and other chemical media.
PVDF gears provide superior high-temperature performance, suitable for power transmission in extreme environments where elevated temperatures are common.
Superior Wear Resistance:
Both PP and PVDF gears exhibit excellent wear resistance, extending their service life and reducing maintenance costs, especially in high-frequency, long-term applications.
Stable Dimensions & Durability:
Both materials feature low water absorption and excellent dimensional stability, ensuring that the gear maintains precise transmission performance within a temperature range of -40℃ to 100℃.
Low Noise Operation:
With smooth tooth surfaces and excellent damping properties, the Super Screw gear operates at noise levels as low as ≤40dB, significantly quieter than metal gears, making it ideal for noise-sensitive environments like offices and home appliances.
Lightweight & Cost-Effective:
PP and PVDF gears are not only cost-effective but also reduce the overall weight of mechanical systems, making them an ideal choice for light-duty, cost-sensitive applications.
The Super Screw gear is suitable for the following fields, especially in light-duty mechanical systems that require high precision, durability, and quiet operation:
Office Equipment: Printers, copiers, scanners, etc.
Home Appliances: Blenders, small fans, coffee machines, etc.
Automation Components: Light-duty conveyors, small robots, automated systems, etc.
Toy Models & DIY Projects: Perfect for precision models and DIY mechanical applications.
Material Choice:
PP (Polypropylene): Offers excellent chemical resistance, low density, and is ideal for environments where chemical media are involved, with good impact resistance.
PVDF (Polyvinylidene Fluoride): Known for superior high-temperature resistance, it is widely used in environments that demand higher strength and temperature tolerance.
Wear Resistance:
Both PP and PVDF gears are self-lubricating, reducing friction and extending service life, thus minimizing maintenance requirements in high-frequency applications.
Low Noise:
Thanks to the material properties, the Super Screw gear operates at noise levels as low as ≤40dB, making it an ideal choice for applications requiring low-noise operation, such as office equipment and home appliances.
