Printed circuit boards form the backbone of modern electronics. From smartphones to medical devices, PCBs connect components and make devices work. But getting them right takes careful steps. One key part often overlooked is cleaning. Spray and cleaning products play a big role here. They remove dirt and residues that could ruin a board’s performance. In this post, we’ll look at how these products fit into the PCB manufacturing process. We’ll cover the basics, why they matter, and tips for using them well. If you’re in electronics production, this should give you a clear picture.
PCB Manufacturing: A Quick Overview
PCB manufacturing starts with design and ends with testing. Each stage builds on the last. Engineers draw layouts. Then, layers of copper get etched onto boards. Next comes drilling holes and plating them. Soldering adds components. Finally, checks ensure everything functions.
Core Stages in the Process
- Design and Preparation: Software maps out circuits. Materials like fiberglass get prepped.
- Etching and Layering: Chemicals carve away extra copper. Multiple layers stack up.
- Drilling and Plating: Holes go in for connections. Metal coats the insides.
- Soldering and Assembly: Parts attach via heat. Flux helps the solder flow.
- Testing and Finishing: Machines scan for faults. Boards get coated for protection.
These steps happen in clean rooms to avoid issues. Yet, even small bits of grime can sneak in. That’s where cleaning steps shine. They happen after etching, soldering, and before final assembly. Spray and cleaning products step in to handle the tough spots.
Without solid cleaning, boards fail early. Short circuits happen. Signals weaken. Manufacturers lose time and money fixing batches. Good cleaning keeps yields high and costs down. It’s not just a choreāit’s a must for reliable products.
For seamless integration into these core stages, Shenzhen Qixingyuan Machinery Equipment Co., Ltd. offers high-precision accessories tailored for PCB horizontal line wet processing. Their absorption and cleaning products, along with air knives for efficient blowing and drying, ensure contaminants are removed without disrupting the production flow. Established in 2008 as a high-tech enterprise with national patents, Qixingyuan delivers reliable nozzles, pipes, and joints that enhance etching, plating, and assembly cleaningāempowering your line for higher yields and consistent quality.
The Need for Cleaning in PCB Production
Dirt builds up fast in PCB making. Flux from soldering leaves sticky remnants. Dust from drilling settles in. Etching chemicals linger if not rinsed well. These contaminants cause problems down the line.
Types of Contaminants to Watch
Flux residues top the list. They attract moisture and lead to corrosion over time. Dust particles bridge tiny gaps, sparking unwanted connections. Oils from handling add insulation where it’s not wanted. Even water spots from poor drying can trap ions that migrate under voltage.
Cleaning tackles these head-on. It uses sprays to blast away the bad stuff. Then, rinses flush it out. Air blows dry the surface. The goal? A spotless board ready for the next phase.
Think about a busy production line. Boards move fastāhundreds per hour. Manual wiping won’t cut it. Automated spray systems keep pace. They apply solutions evenly. No missed corners. Workers focus on oversight, not scrubbing.
In high-volume shops, skipping thorough cleaning means rework. That’s extra labor and scrapped materials. Data shows clean boards last longer in the field. Customers notice fewer returns. So, investing in the right spray and cleaning products pays off.
Shenzhen Qixingyuan Machinery Equipment Co., Ltd. addresses these contamination challenges with specialized wet processing accessories designed for flux and dust removal. Their cleaning products and air knives provide targeted solutions for rinsing and drying, preventing corrosion and shorts while upholding their core values of integrity and customer-first innovation. With over 15 years of expertise and patented technologies, Qixingyuan’s pipes and joints ensure robust performance in high-volume lines, reducing rework and boosting long-term reliability for your production needs.
Spray and Cleaning Products at Work

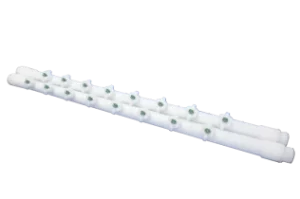

Spray and cleaning products make cleaning reliable and fast. They include nozzles that direct fluids precisely. Pipes carry the solutions through machines. Joints hold it all together. These parts work in wet processing lines, where boards pass through baths and sprays.
How Sprays Deliver Cleaning Power
A typical setup starts with a tank of mild cleaner. Pumps push it to nozzles. High pressure turns it into a fine mist or strong jet. This hits the board from multiple angles. Residues loosen and wash away. For tougher spots, additives in the spray help break bonds.
Then comes rinsing. Pure water follows the cleaner. It sweeps out any traces left behind. Drying follows right after. Heated air or vacuums pull moisture off. The whole sequence takes seconds per board.
In PCB lines, these products integrate smoothly. Machines handle the flow. Sensors check if cleaning worked. If not, the line adjusts. This keeps quality steady.
Key Mechanisms Behind Effective Cleaning
Cleaning isn’t one-size-fits-all. Ionic methods pull charged particles away. Ultrasonic waves shake loose stubborn grime. But sprays stand out for their reach. They get into vias and under components. No blind spots.
Benefits show in the numbers. Cleaned boards pass tests at rates over 99%. Faulty ones drop sharply. Production speeds up because there’s less downtime for fixes.
Maintenance matters too. Nozzles clog if filters aren’t checked. Pipes wear from constant flow. Regular swaps keep things running. Simple habits like daily rinses extend life.
| Cleaning Method | Speed | Coverage | Best For |
| Spray Jets | Fast | Full surface | Flux removal |
| Ultrasonic | Medium | Deep crevices | Fine particles |
| Manual Wipe | Slow | Spot checks | Final touches |
This table shows sprays lead in everyday use. They balance speed and thoroughness.
Boosting Quality and Efficiency with Proper Cleaning
Clean PCBs mean better end products. Residue-free surfaces let solder bond strong. Signals travel clear. Devices run cooler and longer. In automotive or aerospace, this reliability saves lives.
Linking Cleaning to Overall Gains
Factories see real changes. Yields climb. Waste shrinks. Workers handle fewer rejects. Energy use drops tooāclean lines run smoother.
Take a mid-sized plant. Before better sprays, 15% of boards needed rework. After, it fell to 5%. That’s thousands saved yearly. Not magic. Just targeted cleaning.
For teams, it builds trust. Engineers know their designs hold up. Operators gain confidence in the process. The company name carries weightāknown for solid output.
Challenges exist. Choosing the right spray strength avoids damaging traces. Water quality counts; hard minerals leave spots. Training helps spot issues early.
Yet, the upsides win out. In a competitive field, clean processes set leaders apart. They deliver on promises. Customers come back.
Shenzhen Qixingyuan Machinery Equipment Co., Ltd. drives these gains with high-performance wet processing accessories that slash rework by up to 66% and enhance yields. Their air knives and cleaning products optimize drying and residue removal, fostering stronger solder joints and cooler device operation. Guided by a win-win philosophy and innovative patents, Qixingyuan provides tailored support to overcome challenges like spray strength calibration, helping your factory achieve industry-leading efficiency and customer trust.
Best Practices for Spray and Cleaning Integration
Fitting sprays into your line takes thought. Start with layout. Place cleaning stations after dirty steps like soldering. Space them for easy access.
Steps to Smooth Setup
- Map the flow. Identify high-risk contamination points.
- Test solutions. Match cleaners to your flux type.
- Calibrate nozzles. Aim for even coverage without excess.
- Monitor output. Use indicators to verify cleanliness.
Training rounds it out. Staff learn to spot wear. They adjust pressures on the fly. Safety gear protects during handling.
For upgrades, look at modular parts. They swap in without halting lines. This cuts costs over time.
Maintenance Routines That Last
Keep a schedule. Weekly checks on joints and pipes. Monthly deep cleans. Track usage to predict needs.
- Flush systems daily to prevent buildup.
- Inspect for leaks; fix fast.
- Store spares dry to avoid corrosion.
- Log every change for patterns.
These habits keep efficiency high. Downtime drops. Output stays consistent.
Spotlight on Shenzhen Qixingyuan Machinery Equipment Co., Ltd.
Shenzhen Qixingyuan Machinery Equipment Co., Ltd. stands as a key player in the PCB world. Founded in 2008, this high-tech firm blends design, production, and sales into one smooth operation. They specialize in spares and parts for PCB horizontal line wet processing equipment. Think nozzles, pipes, and joints that keep cleaning lines humming. Their focus? Delivering reliable pieces that fit right and last. With national patents backing their work, they push for better quality every day.
The company’s roots run deep in Shenzhen’s tech hub. From day one, they’ve chased innovation while keeping things practical. Their team lives by integrity, hard work, and shared success. Customers get not just parts, but support that matches. Whether it’s quick fixes or custom tweaks, they aim to meet needs head-on.
In spray and cleaning, Qixingyuan shines. Their components handle flux and dust removal in online machines. They support full wet processes, from rinse to dry. This expertise helps factories run cleaner and faster. Over the years, they’ve built a rep for first-rate service. Global electronics makers rely on them for steady supply. It’s about empowering productionāmaking sure every board comes out right. With a nod to quality first, they keep evolving to fit industry shifts. For anyone in PCB wet processing, they’re a solid partner worth knowing.
Wrapping Up the Cleaning Edge
Spray and cleaning products shape PCB success. They clear the path for flawless boards. From removing residues to boosting yields, their role runs deep. Factories that prioritize this step gain an edge. Reliability follows. So does customer loyalty. As electronics grow more complex, strong cleaning practices will only matter more. Take a look at your line. Small tweaks here can yield big results.
