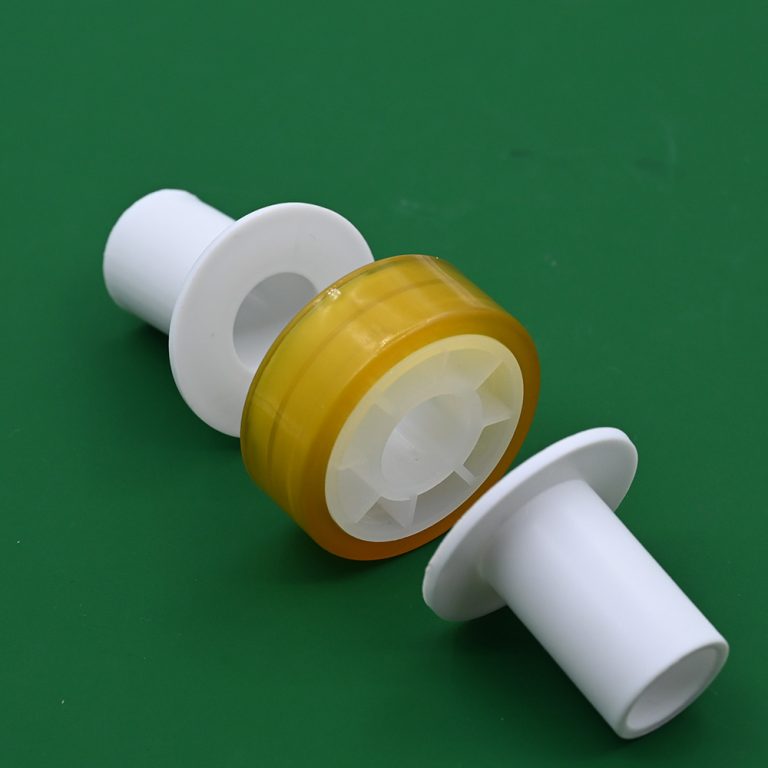

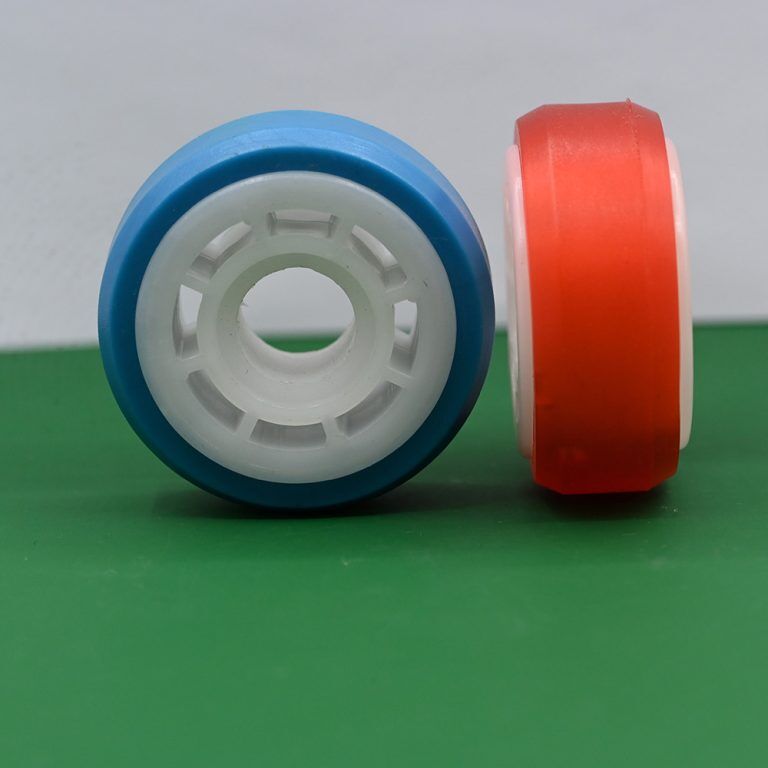

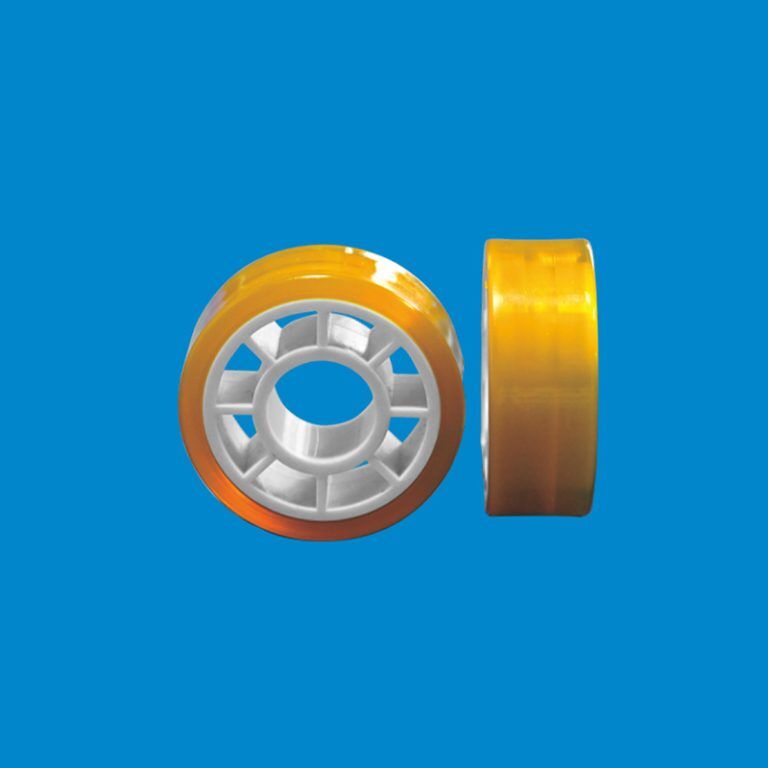

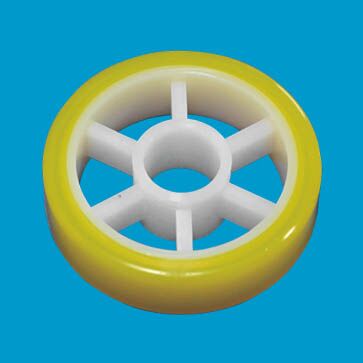

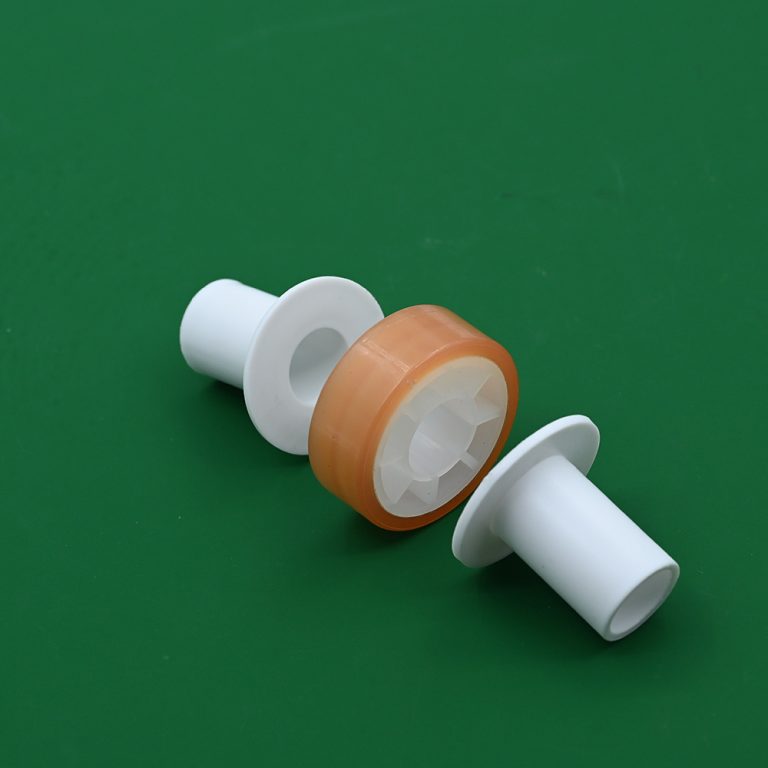

Secure 180° Substrate Rotation with Precision Flip Discs Flipping a PCB board mid-process isn’t just about movement—it’s about control. In high-speed horizontal lines, the moment of rotation is a high-risk zone for scratches and misalignments. Since 2008, Qixingyuan Machinery (QXY) has specialized in engineering the mechanical “touchpoints” for these flip modules. Our flipping machine wheel discs are designed to handle the centrifugal momentum of 180-degree motion while maintaining a non-marring grip. We provide equipment manufacturers with the precise tolerance needed to ensure that every panel, no matter how thin, transitions through the flip-arm without a single mechanical impression.
Choose the Right Grip for Your Flip Cycle
The success of an automated flipping module depends on matching the disc’s material and profile to your specific board type and cycle speed. We provide three primary configurations:
Engineered for High-Stakes Flip Modules
Our components are built for the reality of the PCB shop floor:
Founded in 2011 as Shenzhen Qixing Equipment Parts Business Department, we focus on PCB/LCD wet-process equipment spare parts and custom replacement components.
A high-tech enterprise with multiple national patent technology certifications.
From Air Knives to Gears, Screws, and Conveyor Rollers, we provide a full suite of transmission and cleaning consumables.
Fast communication via WhatsApp and Email for international procurement.
