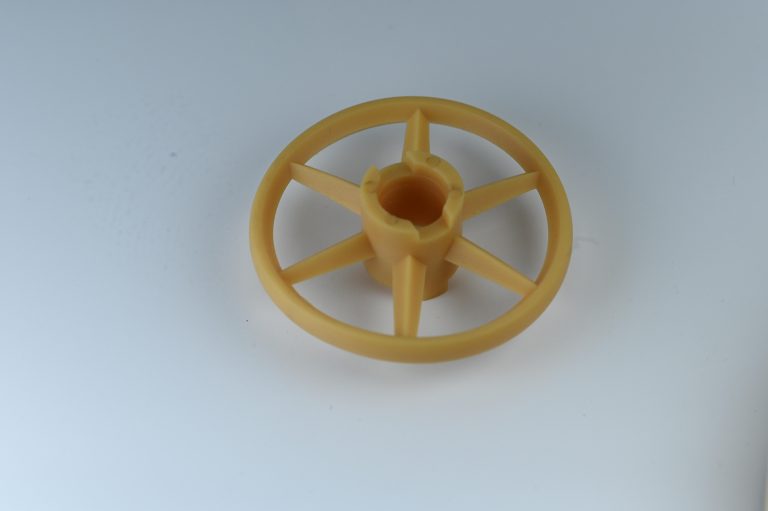

For larger conveyor contact points that need both grip and cushioning, the 50 Monsanto Wheel Disc uses a reinforced core and elastic outer layer to keep PCB, FPC, and LCD panels steady during wet-process transfer.
Core Advantages: Reinforced plastic core, rubber/PU cushioning layer, vibration damping, anti-slip grip, and low-noise performance.
Selection Recommendations: Choose the suitable bore diameter, profile width, coating hardness, and core material based on board weight, conveyor speed, and transfer mechanism.
Applications: PCB, FPC, and LCD conveyor chains, etching machines, developing units, cleaning stations, flippers, and positioning mechanisms.
Stable Operation Guarantee: Helps reduce micro-slippage, transfer shock, edge fractures, shaft vibration, and process interruptions during high-speed production.
Precision Conveyance Through Vibration Damping. In horizontal wet-process lines, erratic PCB transport and high-frequency vibrations are the primary culprits behind board misalignment and micro-scratching. The 50 Monsanto Wheel Disc provides an engineered solution to these stability hurdles. By integrating a high-strength plastic core with a vibration-damping rubberized outer layer, this component ensures consistent grip without damaging the board surface. It effectively stabilizes the movement of panels through complex conveyor chains and flipping mechanisms, significantly reducing the noise footprint while eliminating the common mechanical jitters that lead to uneven processing during chemical immersion.
Optimized Materials for Dynamic Stability
Tailored Performance for Equipment Builders
These components are essential for maintaining stable board transfer in PCB and FPC manufacturing lines. They are extensively deployed in etching machines, developing units, and automated cleaning stations where maintaining precise contact is critical. Within the LCD industry, these discs provide the necessary grip for glass handling without compromising surface integrity. By stabilizing panels as they pass through flippers and positioning mechanisms, these parts minimize the risk of mechanical defects during high-speed production, ensuring that delicate substrates remain centered and protected throughout the entire manufacturing journey.
In etching and developing stages, the 50 Monsanto Wheel Disc serves as the vital interface between the conveyor system and the substrate. By preventing microscopic slippage, it ensures that boards traverse the spray headers at a constant, controlled speed. This stability is critical for achieving uniform chemical reaction times, which directly correlates to higher yields and reduced process rework. Equipment manufacturers utilize these discs to enhance the reliability of their conveyor chains, effectively protecting expensive boards from vibration-induced damage or alignment errors that cause costly process line stalls.
For automated flipping and positioning units, these discs act as a damping cushion. As boards are rotated or moved between transport lanes, the rubberized surface absorbs the sudden shock of acceleration, preventing edge fractures. This operational smoothness extends the service life of the entire conveyor drive system, as it reduces the mechanical stress placed on bearings and motors. By providing a reliable, silent, and non-marring transport medium, these wheel discs offer a measurable ROI for maintenance supervisors looking to minimize downtime and preserve product quality.
| Parameter | Industrial Specification |
| Model Number | 50 Monsanto Wheel Disc |
| Size | 50mm OD × 10mm ID × 15mm L × 5mm W |
| Material | High-Strength Plastic Core with Rubber/PU coating |
| Function | Vibration damping, noise reduction, anti-slip |
| Point of Use | Conveyor chains, flippers, positioning mechanisms |
