The filter cartridges may seem easy to pick, but the wrong selection will definitely result in reduced performance of the PCB wet process line, increased pressure drop, premature wear out of nozzles, and extra labor hours. The PP pleated filter cartridge, string wound filter cartridge, and PP filter core are compared as they all are widely used in liquids filtering.
Why Cartridge Selection Matters in Wet Process Lines
A filter cartridge does more than catch visible particles. In PCB horizontal line equipment, circulating liquid can carry copper residue, dust, fiber, scale, and chemical by-products. Once these particles return to spray pipes, nozzles may clog unevenly and cause unstable rinsing or etching.
This is similar in the case of water purification and chemical filtration systems. When the micron rating of the filter cartridge is too fine, it gets clogged fast. When it is too coarse, it lets the particles through downstream. Customers are advised to consider surface filtration, depth filtration, dirt holding capacity, and chemical resistance before placing an order.
Qixingyuan produces PP pleated filter cartridge, string wound filter cartridge, PP filter core, and PP filter cartridges for PCB wet process equipment. Customers can specify working fluid, micron rating, cartridge size, end caps, and quantity before giving us the quotation request.
Quick Comparison: Structure, Flow, and Cost
The three cartridges may share PP materials or similar dimensions, yet their internal structures are different. That structure decides how particles are trapped and how the cartridge behaves under real flow.
| Item | PP Pleated Filter Cartridge | String Wound Filter Cartridge | PP Filter Core |
| Filtration style | Pleated surface filtration | Wound depth filtration | Melt-blown depth filtration |
| Main strength | Large area, stable flow | High dirt holding, lower cost | Routine replacement |
| Micron range | 0.1–100 microns | 1–100 microns | 1–100 microns |
| Common length | 10–40 inches or custom | 10–40 inches or custom | 10–40 inches or custom |
| Good fit | Fine filtration | Pre-filtration | PCB circulation |
Qixingyuan’s filter series covers these three routes, helping buyers source samples, spare parts, and customized cartridge specifications from one PCB wet process equipment parts supplier.
PP Pleated Filter Cartridge: Stable Fine Filtration
A PP pleated filter cartridge uses folded media to increase effective surface area in the same cartridge size. More area gives liquid more paths through the media, supporting higher flow and lower early pressure rise when sized correctly.
When should buyers use it?
Choose a PP pleated filter cartridge for cleaner liquids, final polishing, electronics process water, and chemical circulation where flow consistency matters. Common choices include 0.1, 1, 5, 10, or 20 micron filtration, higher flow, longer service interval, PP chemical resistance, and clean sealing.
What should be checked before ordering?
Confirm length, diameter, end cap, sealing method, pressure drop, working temperature, and sample photos. In PCB cleaning or rinsing circulation, a 5 micron or 10 micron PP pleated filter cartridge may work well after checking particle load. For dirty liquids, add pre-filtration upstream.
Qixingyuan offers PP pleated filter cartridge options for PCB cleaning, developing, etching, and rinsing circulation lines. Buyers can share tank position, flow demand, working liquid, and target micron rating for recommendation.
String Wound Filter Cartridge: Strong Pre-Filtration
A string wound filter cartridge is built by winding fiber yarn around a central core. Open outer layers catch larger particles first, while tighter inner layers catch smaller particles. This depth filter cartridge structure fits liquids with suspended solids, rust, and mixed particle sizes.
Where does it perform best?
String wound cartridges are often used before finer filters, pumps, nozzles, or process units. They make sense for economical pre-filtration in high-sediment liquid, cleaning liquid circulation, solvent circulation, rust removal, scale removal, and 5 micron to 50 micron filtration.
What should buyers compare?
Fiber material and core material matter. Polypropylene wound media is common for acid and alkali conditions, while other fiber choices may suit different liquids. Buyers should check corrosion, viscosity, temperature, hard particles, and pressure drop during operation.
Qixingyuan supplies string wound filter cartridge products for PCB and industrial liquid filtration. They are useful for buyers who need cost-aware pre-filtration, suspended solids removal, and steady spare part supply for cleaning, developing, etching, or rinsing tanks.

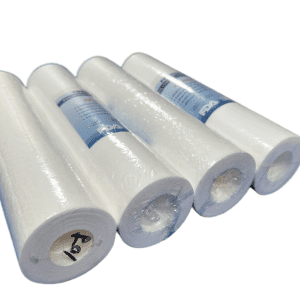

PP Filter Core: Practical Routine Replacement
A PP filter core, also called a polypropylene melt-blown filter core, is made from polypropylene fibers bonded into a graded pore structure. Outer layers catch larger particles, while inner layers retain smaller impurities. It is widely used because it is simple, clean, and easy to replace.
When is a PP filter core suitable?
A PP filter core fits factories that replace cartridges by maintenance cycle. It suits industrial water treatment, PCB cleaning-fluid circulation, chemical processing, and RO pre-filtration. It is also useful for spare-part stocking in 10 inch, 20 inch, 30 inch, and 40 inch sizes.
How fine should it be?
Do not choose the lowest micron number by habit. A 1 micron PP filter cartridge may catch finer particles, but it can clog faster in dirty liquid. A 10 micron or 20 micron PP filter core may last longer and still protect spray nozzles when coarse particles are the main issue.
Qixingyuan provides PP filter core and PP filter cartridges for routine wet-process filtration and spare-part stocking. Buyers can send size, diameter, end cap type, working liquid, operating temperature, and replacement quantity for faster confirmation.
How to Select Micron Rating and Cartridge Size
Micron rating is a key detail, but it should not be the only detail. A filter cartridge must also match flow, pressure, housing size, chemical environment, and particle type. In many factories, a two-stage setup works better than one very fine cartridge.
| Micron range | Typical use | Practical note |
| 1–5 microns | Fine filtration, polishing | Best with cleaner feed liquid |
| 5–20 microns | PCB cleaning, rinsing, water treatment | Balanced choice for many lines |
| 20–100 microns | Pre-filtration, pump protection | Helps reduce fast clogging |
For quotation, prepare cartridge length, inner diameter, outer diameter, end cap, seal type, working liquid, temperature, target micron rating, flow rate, filter housing photo, and monthly replacement quantity.
Qixingyuan works with buyers who need custom filter cartridge support for PCB wet process lines, water treatment, chemical filtration, and consumable replacement. The team can match PP pleated, string wound, or PP filter core options based on actual line condition.
About Shenzhen Qixingyuan Machinery Equipment Co., Ltd.
Shenzhen Qixingyuan Machinery Equipment Co., Ltd. is a supplier focused on PCB horizontal line wet processing equipment spares and parts. Its product scope covers spray and cleaning products, filter series, air knives, rollers, gears, screws, transmission parts, consumables, measurement products, and custom spare parts by drawing or sample. In PCB lines, small parts can decide whether a machine runs smoothly or stops because of clogging, wear, leakage, or poor fit. Qixingyuan helps maintenance and procurement teams source practical replacement parts for acidic, alkaline, humid, and high-duty environments.
For filtration needs, Qixingyuan offers PP pleated filter cartridge, string wound filter cartridge, PP filter core, and PP filter cartridges for PCB cleaning, developing, etching, rinsing, water treatment, and chemical liquid circulation.
Conclusion
There is no single best filter cartridge for every line. A PP pleated filter cartridge is a strong choice for stable flow and fine filtration. A string wound filter cartridge is practical for pre-filtration and heavier suspended solids. A PP filter core is cost-effective for routine polypropylene cartridge replacement and spare-part stocking. The buying decision starts with real liquid conditions: particle type, pressure rise, micron rating, and replacement interval.
Qixingyuan can support buyers with product selection, comparison samples, and quotation details for PP pleated filter cartridge, string wound filter cartridge, PP filter core, and related PP filter cartridges used in PCB wet process and industrial liquid filtration systems.
FAQs
1. Which filter cartridge should be used first in a dirty circulation tank?
For a dirty circulation tank with visible particles, a string wound filter cartridge or coarse PP filter core is usually safer. A fine PP pleated filter cartridge may clog too quickly if installed first. Many factories use 20–50 micron pre-filtration before 5–10 micron filtration downstream. Qixingyuan can match cartridge type with tank position and particle load.
2. Is a PP pleated filter cartridge better than a string wound filter cartridge?
It depends on the task. A PP pleated filter cartridge is better for stable flow, larger filtration area, and fine particle control in cleaner liquids. A string wound filter cartridge is better when liquid carries suspended solids, rust, or scale and the buyer needs an economical pre-filter. In PCB wet process filtration, both may be used in separate stages.
3. What micron rating is practical for PCB cleaning and rinsing lines?
Many PCB cleaning and rinsing lines use 5 micron, 10 micron, or 20 micron filter cartridges, depending on bath condition and nozzle sensitivity. If the liquid is clean, 1–5 micron filtration may work. If particles are heavy, start coarser to avoid fast blockage. Qixingyuan suggests checking current filter photos and replacement cycle first.
4. Can PP filter cartridges be customized for different wet process equipment?
Yes. PP filter cartridges can often be supplied with different lengths, micron ratings, end caps, and sizes for wet process equipment. Customization is important when replacing older parts or using non-standard housings. Qixingyuan supports PCB equipment spare parts by drawing, sample, or clear specification, helping buyers reduce mismatch risk and speed up procurement.
