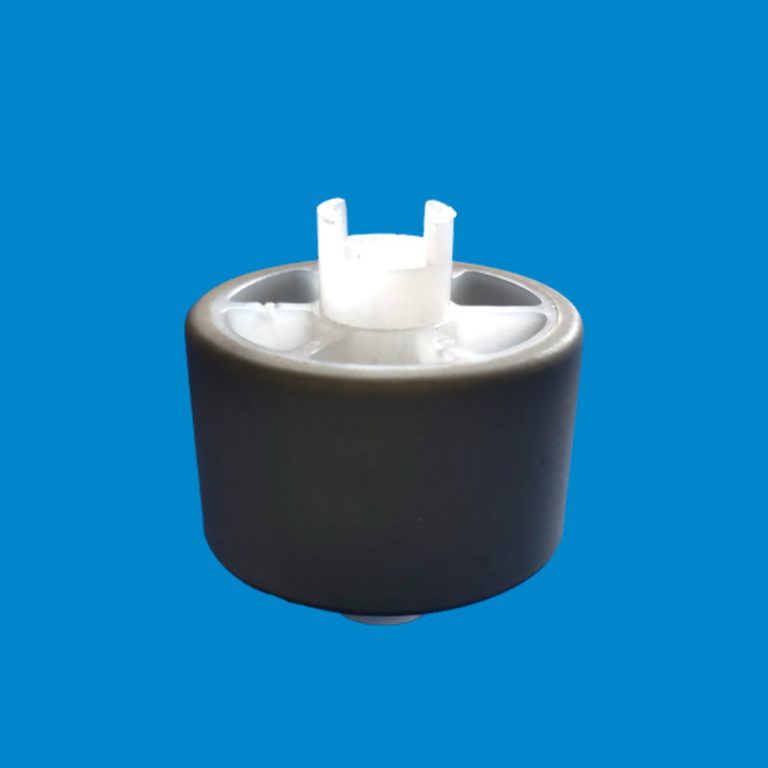

For wet-process lines that struggle with chatter marks and unstable board tracking, the 22 Monsanto Wheel Disc AR103 provides a resilient grip surface that absorbs vibration and keeps PCB panels moving at a consistent speed.
Core Advantages: Monsanto polymer material, strong vibration damping, chemical resistance, and stable high-speed friction performance.
Selection Recommendations: Choose the suitable hardness, shaft diameter, disc width, and tread profile based on board fragility, conveyor load, and high-slippage areas.
Applications: PCB, FPC, and LCD conveyor chains, turnover modules, board flippers, etching lines, developing lines, and cleaning equipment.
Stable Operation Guarantee: Helps reduce panel slippage, chatter marks, surface scratches, noise, and tracking errors during continuous wet-process production.
Eliminating Conveyance Instability and Mechanical Vibration in Wet Process Lines.
Conveying delicate PCBs through high-speed wet process lines often results in micro-vibrations, slippage, and premature wear on drive components. These issues lead to positional errors and surface defects that compromise production yield. The 22 Monsanto Wheel Disc AR103 is engineered to mitigate these risks by providing a superior grip and dampening interface. By replacing standard hard rollers with this specialized polymer wheel, equipment manufacturers can effectively absorb mechanical shocks, reduce acoustic noise levels, and ensure precise board tracking through critical stages like etching and development.
Superior Polymer Engineering for Industrial Demands
· Advanced Material Resilience: Built from proprietary Monsanto polymer compounds, these wheels provide exceptional toughness compared to standard rubber.
· Chemical Hardiness: Fully resistant to acidic, alkaline, and oxidizing environments, ensuring no degradation during exposure to process chemistries.
· High-Speed Stability: Engineered to maintain structural integrity and frictional grip even under continuous, high-speed rotary operations.
Tailored Solutions for Equipment Integration
· Shore Hardness Adjustment: Options available to fine-tune the elasticity based on the fragility of the boards and the weight of the conveyor load.
· Dimensional Flexibility: Precision machining to meet specific shaft diameters and disc widths for seamless retrofit into existing equipment.
· Surface Profiling: Customizable tread patterns to maximize traction for high-friction or high-slippage zones within the line.
These wheel discs serve the critical needs of the PCB, FPC, and LCD manufacturing sectors by ensuring reliable material transport in wet process equipment. They are ideally suited for high-load conveyor chains, board flippers, and precise positioning mechanisms within developing, etching, and cleaning modules. Because these wheels maintain dimensional stability under varying chemical stresses, they are heavily deployed in equipment that handles thin-core substrates where preventing mechanical deformation and surface scratching is paramount to achieving high-yield throughput in mass production environments.
In the context of horizontal etching and developing lines, the primary challenge is maintaining consistent speed without scratching the copper circuitry. These discs act as the silent interface between the drive mechanism and the board edge. By dampening the transmission of vibrations from the motor to the panels, the AR103 prevents “chatter” marks, significantly improving the surface finish and etching uniformity. The result is a more stable production environment that reduces downtime associated with tracking errors.
For long-span conveyors and turnover modules, the ROI is found in extended component lifespan and reduced maintenance cycles. Traditional rubber wheels often swell or harden when exposed to continuous chemistry, leading to slippage and erratic board movement. The Monsanto polymer construction effectively resists this chemical fatigue, ensuring that the conveyance system remains calibrated over long periods. This reliability is vital for maintaining the high-speed throughput required in modern automated board factory lines.
| Parameter | Industrial Specification |
| Model Number | 22 Monsanto Wheel Disc AR103 |
| Material | Monsanto Polymer |
| Chemical Resistance | Acid, Alkali, Oil, Process Solvents |
| Function | Vibration Damping / Conveyance Grip |
| Wear Resistance | High-speed long-term friction endurance |
